Andrology and male fertility
Bonraybio Co., Ltd. — LensHooke® — Taiwan
A complete line for male fertility testing: AI-driven optical semen analysis, sperm DNA fragmentation testing and centrifuge-free sperm separation, supplied and serviced in Iraq by TMC.
1–2 minutesFull semen report on the X3 PRO, without a microscope
Featured instrument
About the manufacturer
Bonraybio, founded in 2016 in Taichung, Taiwan and listed on the Taipei Exchange since December 2024, develops AI-driven optical semen analysis systems under the LensHooke® brand.
Its devices are sold in 53 countries and backed by 90 granted patents, spanning routine semen analysis, sperm DNA fragmentation testing and centrifuge-free sperm separation for assisted reproduction.
Sealed single-use cassettes replace manual chamber loading, so results depend far less on which technician is on shift. Published inter-operator reproducibility is ICC 0.89, and a full X3 PRO report takes one to two minutes without a microscope.
Coverage
Routine semen parameters on the LensHooke analysers, with DNA fragmentation on the X12 PRO.
Products
Every instrument below is supplied, installed, calibrated and maintained by our own biomedical engineering team, with reagents and consumables delivered under a controlled cold chain.
Semen quality analyser for the clinic and andrology bench

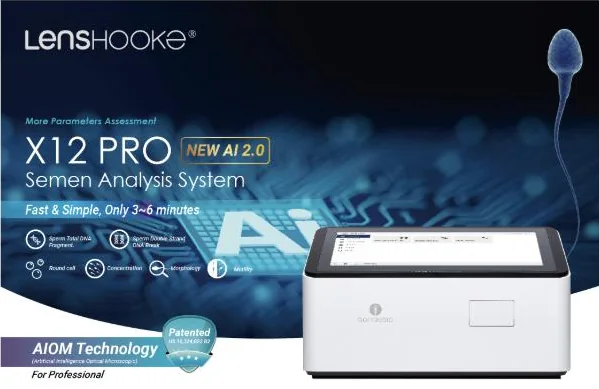

Laboratory semen analysis system with DNA fragmentation
Point-of-care semen analyser

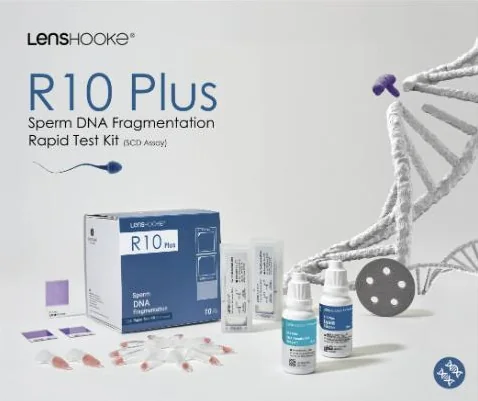

Sperm DNA fragmentation rapid test kit

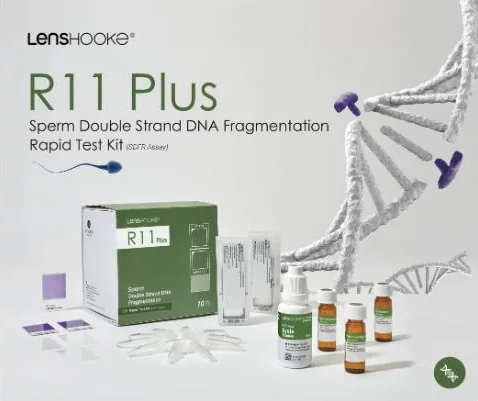

Double-strand DNA fragmentation rapid test kit
Centrifuge-free swim-up separation for IUI, IVF and ICSI

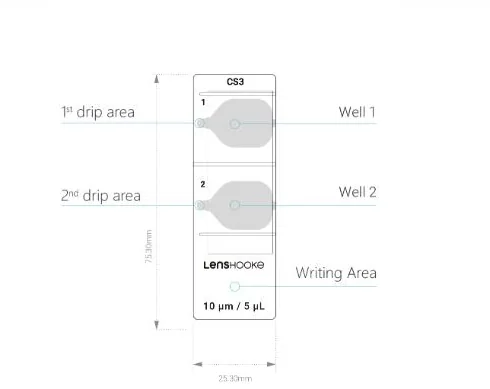

Sealed 10 µm counting chamber

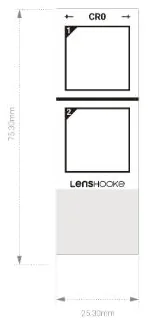

Morphology without a staining bench
Product images are the property of the manufacturer and are reproduced here as their appointed distributor.
Technology
A camera and an algorithm instead of a counting chamber and manual reading. We also set out the two things the analyser does not do.
A built-in video microscope captures real fields inside a sealed disposable cassette. Image processing derives concentration from unit density, motility from frame-by-frame trajectory tracing, and morphology from AI classification.
No staining, dilution or centrifugation for routine analysis: load the cassette, insert it and read. Staining applies only to the CR0 morphology slide and the R10/R11 DFI kits.
Reference values follow the WHO Laboratory Manual for the Examination and Processing of Human Semen, 5th and 6th editions.
Volume is not measured by the analyser and is entered separately; morphology below 4% normal forms should be verified manually. We state this up front so your andrology team can plan for it.
The full range
We supply, install, calibrate and maintain these systems across all 18 governorates, with reagents and consumables delivered under a controlled cold chain.
| Product | What it covers |
|---|---|
| LensHooke X3 PRO | Clinic and point-of-care analyser: concentration, total/progressive/non-progressive motility, morphology, round cells and pH in one to two minutes. 5-inch touchscreen, video playback, LAN and HDMI output. |

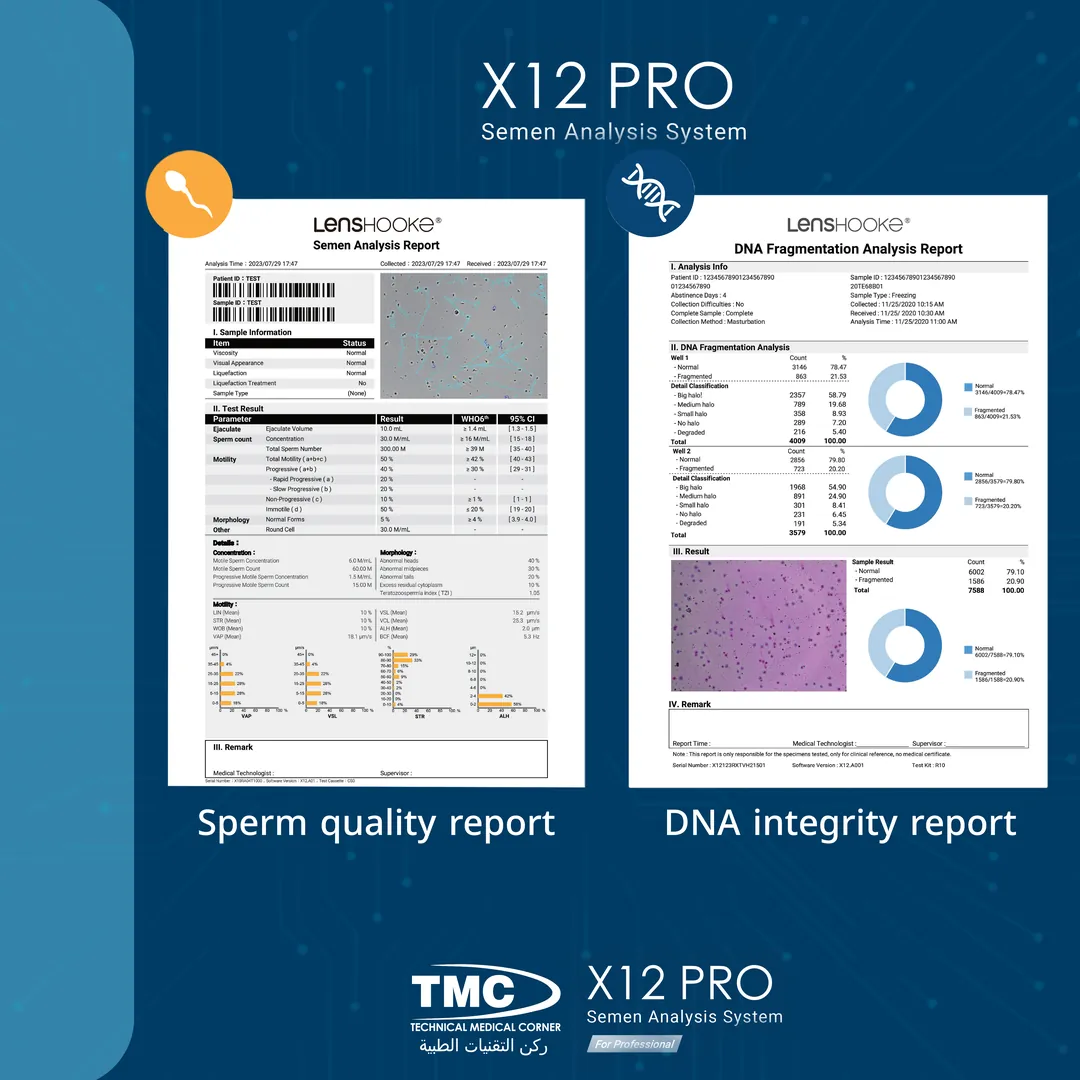

| LensHooke X12 PRO | Laboratory flagship with automatic XY stage, autofocus and Full HD imaging, analysing over 3,000 sperm per run in three to six minutes and adding single- and double-strand DNA fragmentation index. Barcode scanning and EMR integration. |

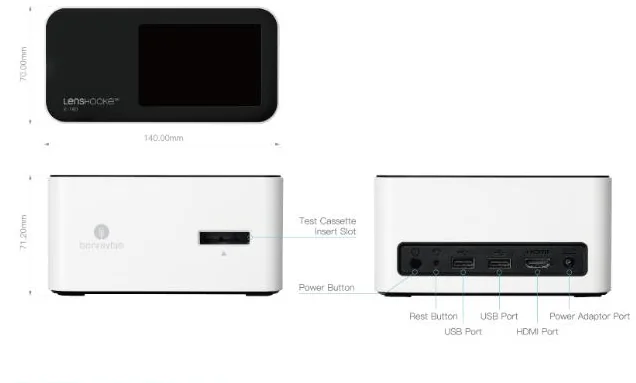

| LensHooke X1 PRO | The original point-of-care analyser: concentration, motility, morphology and pH in two to five minutes on a 3.5-inch touch panel. |
| R10 / R10 Plus / R11 Plus | Sperm DNA fragmentation kits using the sperm chromatin dispersion assay; the Plus versions stain in one minute. R11 Plus measures double-strand fragmentation. |

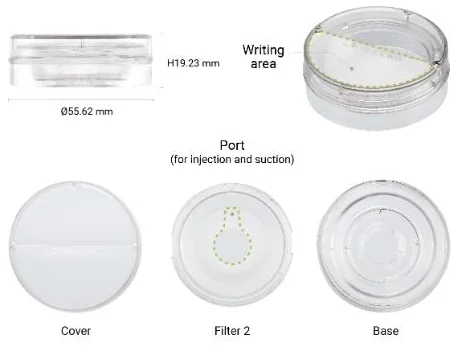

| CA0 / CA1 Sperm Separation Device | Centrifuge-free swim-up separation for IUI, IVF and ICSI: 1 mL semen with wash medium, 30 minutes at 37 °C, then withdraw 0.5 mL. |
| Consumables & QC | CS1 test cassette, CS3 test slide, CR0 prestained morphology slide, C-KUP CK0 liquefaction cup, X QC beads, reticle and video, and S10 data consolidation software. |
Next step
Send us the scope. We will come back with a configuration, a consumables projection and a service plan, not just a price list.
