iFlash 1800
The workhorse chemiluminescence analyser for clinical laboratories
- Up to 180 tests per hour
- 50 sample positions with STAT function
- 20 reagent positions with onboard storage
- FDA 510(k) cleared together with the iFlash Total β-hCG assay
Immunoassay and laboratory automation
YHLO
Shenzhen YHLO Biotech Co., Ltd. — China
From a benchtop chemiluminescence analyser to a full automation line on one platform, supplied and serviced in Iraq by TMC.
Represented by TMC in Iraq72 EU IVDR CE certificates (BSI)FDA 510(k): iFlash analyser + Total β-hCGNMPA
Over 110 parametersAutoimmune to cardiac, on the same random-access iFlash
At a glance
About the manufacturer
Founded in 2008 and headquartered in Shenzhen, YHLO Biotech is listed on the Shanghai Stock Exchange STAR Market (688575).
It develops chemiluminescence immunoassay systems, automated clinical chemistry, ESR analysers and total laboratory automation, with R&D centres in Tokyo, Wuhan and Changsha and a patent portfolio of 681 filings. Its products are used in nearly 115 countries.
- Founded
- 2008, Shenzhen
- Listed
- SSE STAR Market 688575
- Reach
- Nearly 115 countries
- Patents
- 681 filings
- R&D centres
- Tokyo, Wuhan, Changsha
- Certification
- EU IVDR CE (BSI), FDA 510(k), NMPA
Why it matters for your laboratory
YHLO is known for its chemiluminescent autoimmune panel: ANA, dsDNA, ENA profile, ANCA, anti-CCP, APS and coeliac antibodies running on the same random-access analyser as thyroid, fertility and tumour markers.
Products
Products we supply
Every instrument below is supplied, installed, calibrated and maintained by our own biomedical engineering team, with reagents and consumables delivered under a controlled cold chain.

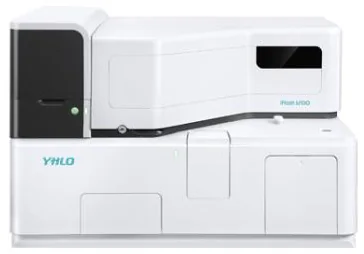

iFlash 1200
Benchtop chemiluminescence for smaller laboratories
- Up to 120 tests per hour
- 16 sample positions with STAT function
- 15 reagent positions with onboard storage
- Up to 500 reaction vessels on board

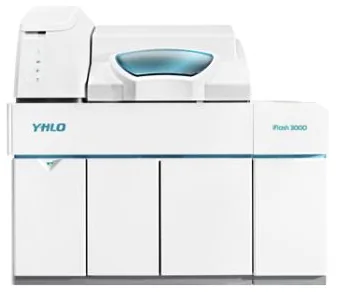

iFlash 3000
Mid- to high-volume immunoassay
- Up to 300 tests per hour
- 140 sample positions
- 30 onboard reagent positions
- 2,000 reaction vessels

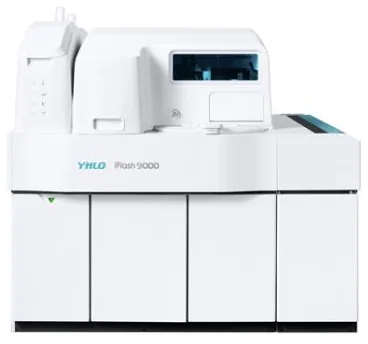

iFlash 9000
High-volume immunoassay, ready for the automation track
- Up to 600 tests per hour
- 140 or 480 sample positions depending on loading unit
- 40 reagent positions with onboard refrigeration
- 3,000 reaction vessels; up to four units linked
- Connects to the iTLA automation line

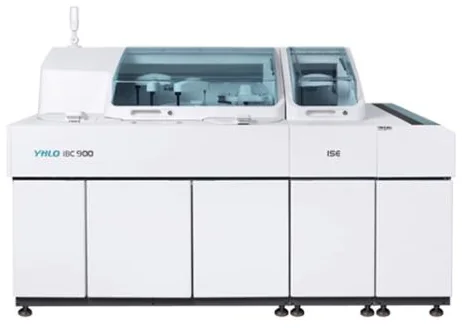

iBC 900
Clinical chemistry with ISE, pairing with iFlash as one workstation
- 1,200 tests per hour with ISE
- Up to 105 reagent positions
- Whole-blood HbA1c without pre-processing
- Flexible sampling module allocation

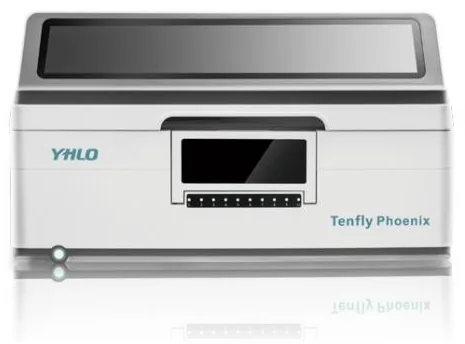

Tenfly Phoenix Blot Analyzer
Automated line immunoassay processing
- 50 sample positions, compatible with original sample tubes
- Up to 60 strips dried automatically within 20 minutes
- Fully automatic quantitative addition of sample and reagent
- Automated strip scanning and result interpretation

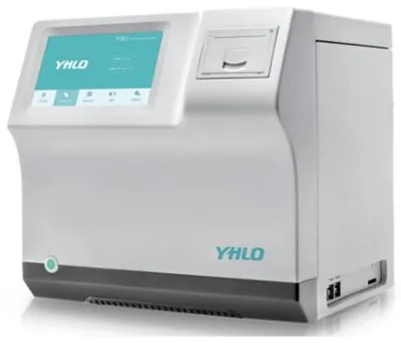

VISION Pro ESR
Fully automatic erythrocyte sedimentation rate
- Available in 8- and 16-tube models
- Temperature and haematocrit correction
- Internal barcode reader and multi-language touchscreen
- LIS connectivity and print options; maintenance-free
Not sure which iFlash fits your workload?
Tell us your daily sample volume and test menu. We will size the analyser and send the configuration and consumables projection in writing.

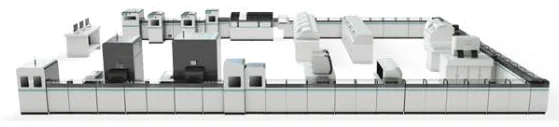

iTLA
Total laboratory automation across six modules
- Sample loading, centrifugation, decapping, rack connection, track and output
- Intelligent recognition of tube types
- Connects the iFlash immunoassay and iBC chemistry lines
- iF Design Award winner
Product images are the property of the manufacturer and are reproduced here as their appointed distributor.
Technology
One platform, from benchtop analyser to automation line
- Acridinium ester CLIA
Direct chemiluminescence on magnetic microparticles with four-step magnetic separation and high-precision photomultiplier detection. - Modular expansion
iFlash 3000 and iFlash 9000 expand to up to four connected units and integrate with the iTLA automation line. - Integrated workstation
The iBC 900 chemistry analyser connects directly to the iFlash immunoassay platform, giving one biochemistry-plus-immunoassay workstation.
Instruments
Instrument platforms
We supply, install, calibrate and maintain these systems across all 18 governorates, with reagents and consumables delivered under a controlled cold chain.
Compare all specifications
| Platform | Specification |
|---|---|
| iFlash 1200 | Up to 120 tests per hour, 16 sample positions with STAT, 15 refrigerated reagent positions, first result in 13 minutes. Sample volume 5–150 µL. |
| iFlash 1800 | Up to 180 tests per hour, 50 sample positions with STAT, 20 onboard reagents, 1,000 reaction vessels, first result in 12 minutes. FDA 510(k) cleared with the Total β-hCG assay. |
| iFlash 3000 | Up to 300 tests per hour, 140 sample positions including 15 STAT, 30 refrigerated reagent positions, 2,000 reaction vessels. Incubation held at 37.0 °C ± 0.3 °C. |
| iFlash 9000 | Up to 600 tests per hour, 140 or 480 sample positions depending on loading configuration, 40 refrigerated reagent positions, 3,000 reaction vessels. |
| iBC 900 | Fully automated clinical chemistry at 1,200 tests per hour with ISE, up to 105 reagent positions, and whole-blood HbA1c without pre-processing. |
| iTLA / iTLA Max | Total laboratory automation across six modules — sample loading, centrifugation, decapping, rack connection, track and sample output — with intelligent tube recognition. iF Design Award winner. |
| Tenfly Phoenix Blot Analyzer | Line immunoassay processor for 44 strips, programmable incubation, 7-inch touchscreen, with liver autoimmunity and vasculitis panels. |
| VISION / VISION Pro ESR | Fully automatic maintenance-free ESR analysers in 8-, 16- and 32-tube configurations with temperature and haematocrit correction, barcode reader and LIS connectivity. |
Next step
Planning a laboratory, a tender or a replacement?
Send us the scope. We will come back with a configuration, a consumables projection and a service plan, not just a price list.
